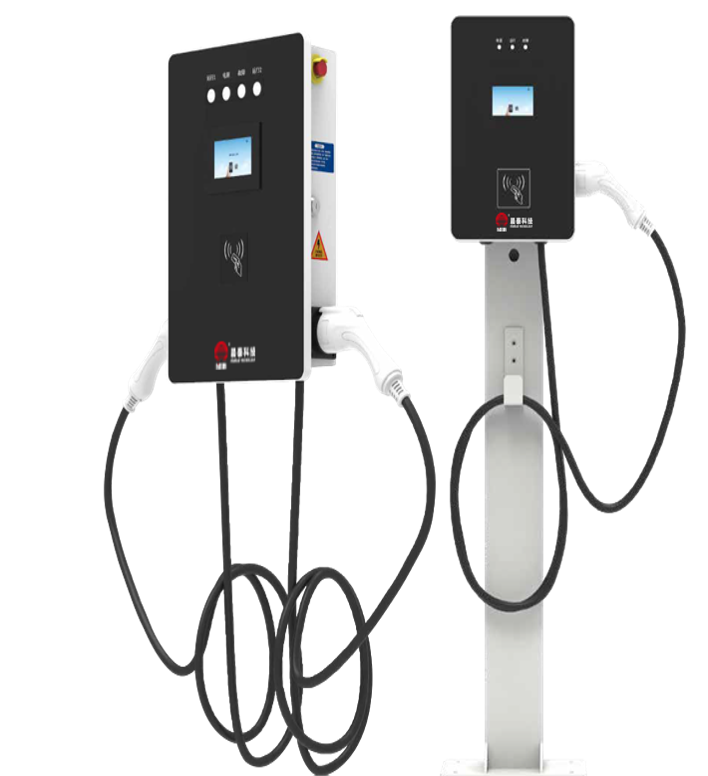

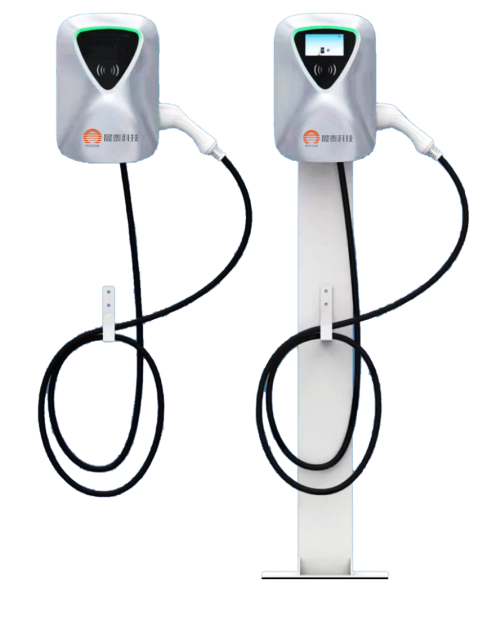

1. Provides two installation modes: vertical and wall-mounted;
2. Uses AC220V input;
3. The main control board uses a single-chip microcomputer with an embedded operating system. The charging modes are divided into four types: automatic full charge, fixed time, fixed amount, and fixed power. RS-485 networking communication interface can be reserved, and optional GPRS networking mode is provided.
4. It uses a 4.3-inch 480x272 resolution color touch screen display, which can be operated by touch buttons and can set the charging mode;
5. It uses a single-phase electronic energy meter to measure electricity and communicate with the main control board through the RS-485 interface;
6. It uses a contactless smart card reader to read the relevant information of the IC card, communicate with the main control board through the RS-485 interface, and the main control board background program performs charger identification, user information recording, charging fee calculation, etc.;
7. The incoming line switch uses a switch with leakage protection function and is equipped with an emergency stop button;
8. The appearance adopts sheet metal and part of ABS plastic structure;
9. Complete system protection function, safe and reliable;
10. Easy to install, operate and maintain.
